LabSpec® 5000/5100 Portable Vis/NIR Spectrometer
A rugged and reliable post-dispersive near-infrared spectrometer designed for the industrial, manufacturing, laboratory, and field environments, providing research-grade materials measurement information, where and when you most need it
- Modular wavelength ranges of 350-2500 nm, configurable to meet your specific application requirement
- Internal high performance Halogen light source that provides stable, high output light
- Improved ruggedness, now with protective non-slip urethane end caps
- Ethernet connectivity with optional wireless operation
- Expanded temperature operating parameters (0-40d C)
- Enhanced remote diagnostics (via internet)
- Embedded trigger
- Comes standard with ruggedized Pelican case for easy transport and storage
- Compatibility with goLab Mobile Workstation or Ergonomic ProPack for convenient warehouse or field use (both available separately)
350-2500 nm, 350-2500 nm, 350 - 2500nm, 350-2500 nm, 350-2500 nm, 350-2500 nm
Spectral Range :
3 nm @ 700 nm, 10 nm @ 1400/2100 nm,
Spectral Resolution (5000) :
3 nm @ 700 nm, 6 nm @ 1400/2100 nm
Spectral Resolution (5100) :
1.377 nm @ 350-1050 nm, 2 nm @ 1000-2500 nm
Sampling Interval :
1 fixed reflective holographic diffraction grating, silicon photo-diode array with 512 elements and high order blocking filter
Detectors :
Included 12 Volt DC Lead Acid Gel Cell battery belt for up to 9 hour output and external power system 90-240VAC 50/60Hz (automatic selection) input.
Power :
10/100Base T Ethernet interface
Connectivity :
50 µ AU from 350 - 1050 nm, 30 µ AU from 1000 - 1800 nm, 60 µ AU from 1800 - 2500 nm
Photometric Noise @ 0 AU (RMS) w/ Transmission Probe :
12g
12.3 lbs (5.6 kg)
Weight :
0° to 40° C
Operating Temperature :
Internal Halogen lamp
Light Source :

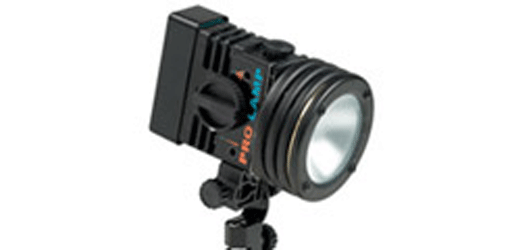

ASD Pro Lamp
The ASD Pro Lamp is a 14.5 Volt 50 Watt Lamp that is tripod mountable and adapted especially for indoor lab diffuse reflectance measurements over the region 350 - 2500 nm....

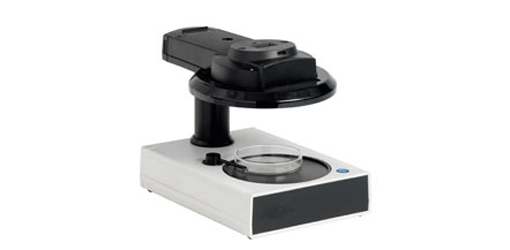

Turntable
When your application requires analysis of irregularly shaped or non-homogeneous samples, the ASD Turntable is ideal for obtaining a highly accurate average. Especially useful for instrument owners in the grain, agriculture, pulp and paper, food, plastics, and mining industries....

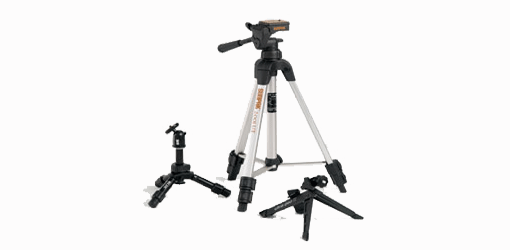

Tripod
ASD offers a variety of tripods ideal for use with ASD products in a wide range of applications:
FieldSpec HandHeld 2 spectroradiometer, Integrating Sphere, Pistol grips, Cosine receptors, Pro Lamp, Reference panels...

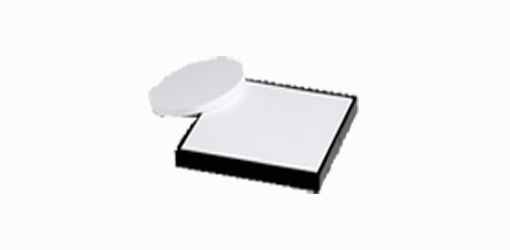

Reference Probe
Reference panels are available in calibrated and non-calibrated diffuse white and gray, in varying sizes and reflectance levels, including encapsulated gray scale (NIST/NRC traceable) wavelength and USP standards for USP 1119....

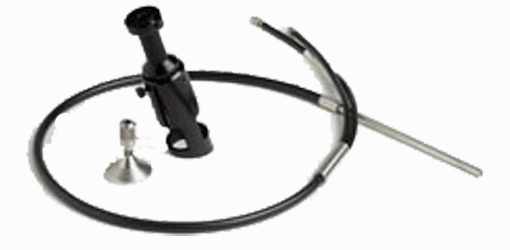

Reflectance Probe
ASD offers a variety of reflectance probes for various contact reflectance measurements. A selection of spacer attachments can be combined with the reflectance probe for distance uniformity depending upon the sample size and type.
Shown above: Bifurcated reflectance probe, stand-off attachment, and trumpet spacer....
Fibre Optic Illuminator
The Fiberoptic Illuminator is a portable light source for use with ASD instruments and sampling accessories that don't have a built-in light source....

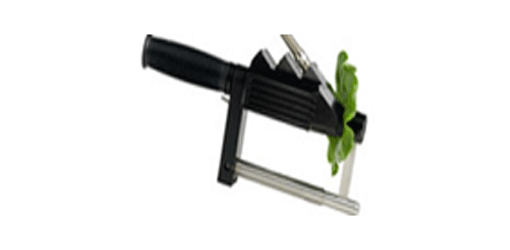

Plant Probe
The same great design and functionality as the High Intensity Contact Probe with a lower intensity bulb position for non-destructive data collection from live vegetation and other heat sensitive targets.
Combine the Plant Probe with the ASD Leaf Clip (shown left) for easy one-handed functionality with improved measurements....

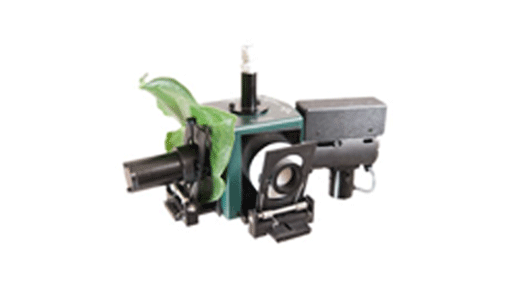

Integrating Sphere
Integrating spheres collect reflected light from samples over a full hemisphere. The sphere, by nature of its internal diffuse (lambertian) reflection and integration of the energy, is insensitive to directional reflectance features coming from the sample, and therefore, gives a very repeatable "averaged" response to the reflectance of the sample placed in the beam at the sphere port. Sample placement and incidence beam/collection alignment are less critical to the measurement results because the integrating sphere looks at representative averaged energy from all angles at the same time....

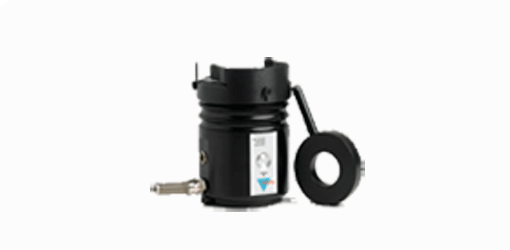

Hi-Brite Muglight
The same design, features, and benefits of the High Intensity Muglight, but with a higher intensity illumination setting on the sample window. This higher intensity illumination is ideal for inorganic applications, and is recommended for use with the TerraSpec, FieldSpec 3 Hi-Res, and LabSpec 5100 and 2600 models.
The Hi-Brite Muglight is designed for analysis of raw materials requiring reflectance and absorbance measurements. It can measure samples through glass vials, or using the ASD sampling tray adapter. It's unique and innovative design minimizes measurement errors associated with stray light and specular reflected components....
Hi-Brite Muglight
The same design, features, and benefits of the High Intensity Muglight, but with a higher intensity illumination setting on the sample window. This higher intensity illumination is ideal for inorganic applications, and is recommended for use with the TerraSpec, FieldSpec 3 Hi-Res, and LabSpec 5100 and 2600 models.
The Hi-Brite Muglight is designed for analysis of raw materials requiring reflectance and absorbance measurements. It can measure samples through glass vials, or using the ASD sampling tray adapter. It's unique and innovative design minimizes measurement errors associated with stray light and specular reflected components....
GoLab Mobile Work Station
The ASD goLab Mobile Work Station - taking portability to the extreme!
Now, technicians and researchers, armed with a powerful ASD spectrometer system and the goLab Mobile Work Station, are more empowered than ever before to take the lab to the sample location, and easily perform analyses formerly restricted to a laboratory environment.
The goLab Mobile Work Station acts as a wheeled carrier for streamlined transport between locations, and then quickly unfolds to support all your sampling needs "right on the spot"!
Shown: The goLab Mobile Work Station with work platform collapsed for quick and easy transport between locations (LabSpec 5000 and controller laptop attached to work platform also shown, both sold separately)....
GoLab Mobile Work Station
The ASD goLab Mobile Work Station - taking portability to the extreme!
Now, technicians and researchers, armed with a powerful ASD spectrometer system and the goLab Mobile Work Station, are more empowered than ever before to take the lab to the sample location, and easily perform analyses formerly restricted to a laboratory environment.
The goLab Mobile Work Station acts as a wheeled carrier for streamlined transport between locations, and then quickly unfolds to support all your sampling needs "right on the spot"!
Shown: The goLab Mobile Work Station with work platform collapsed for quick and easy transport between locations (LabSpec 5000 and controller laptop attached to work platform also shown, both sold separately)....
Fibre Optic Cable
No matter your application, ASD can provide the fiber optic cable you need to best meet your analysis requirements. We offer cables in two types PVC and ruggedized, with a stainless steel cover. A variety of lengths and bundle sizes, with the connectors specific to the instrument and accessories are available....

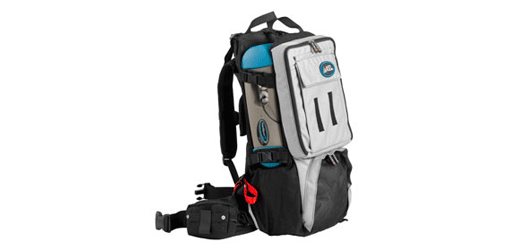

Ergonomic Pro-Pack Backpack
The ASD Ergonomic Pro-Pack Backpack takes field portability to a higher level for FieldSpec, LabSpec, and TerraSpec customers requiring the ultimate in portability.
Constructed of ultra-tough but lightweight material, the Ergonomic Pro-Pack Backpack weighs only 5.5 pounds (2.49 kg). The Pro-Pack Backpack positions the center of mass much closer to the body, and the easily adjustable ‘one size fits all' frame accommodates all body types for superior ergonomics....
High-Intensity Contact Probe
The ASD High Intensity Contact Probe is designed for contact measurements of solid raw materials such as minerals, grains, other granular materials. Its innovative optical design minimizes measurement errors associated with stray light and allows for measurement of samples through clear and transparent plastic bags.
Also available with the ruggedized cable feed and cable for applications requiring extra cold or harsh temperatures...
Hi-Intensity Muglight
The ASD High Intensity Muglight is designed for analysis of raw materials requiring reflectance and absorbance measurements. It can measure samples through glass vials, or using the ASD sampling tray adapter. It's unique and innovative design minimizes measurement errors associated with stray light and specular reflected components....
