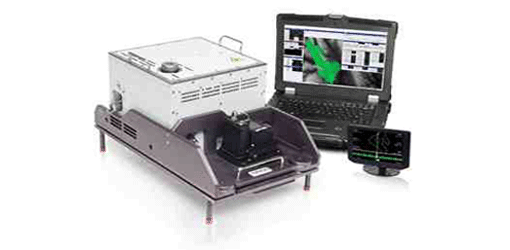

ALTM Orion Ultra-Compact Mapper
ALTM Orion is the worlds smallest complete lidar mapping solution. Combining high-density data collection with high-precision results. The very latest in technology innovation and system design, Orion enables cost-effective, reliable surveying in an ultra-compact design, while maintaining all the features and performance benefits you have come to expect.
Orion-M Series, a mid-altitude, high-performance mapping sensor that provides stunning data precision and the accuracy typically demanded for engineering applications. Capable of collecting data at altitudes greater than 2000 m, Orion-M is the ideal choice when small payload platforms and/or multi-application flexibility is desired.
Orion-C Series, a low-altitude system for corridor applications where maximum object detail is required. Whether for its tremendous ground density capability (200 kHz effective) or its ability to operate with complete eye-safety at extremely low altitudes, Orion-C is the preferred choice of industry professionals
- Ultra-compact sensor solution enabling small platform operation
- Multi-peripheral imaging sensor capable
- Latest laser technology featuring 200 kHz sampling capability
- Automated roll compensation for straight data swaths below the collection platform
- GPS, GLONASS and L-band ready
Extremely narrow laser pulse widths enable high measurement precision and accuracyFully programmable FOV for incredible densityIntensity capture with large dynamic range resulting in exceptional lidar image quality and small target detectionModular design approach for ease of installation, portability and serviceability
60 MP medium format camera (optional)
Image capture :
28 V; 300 W; 12 A
Power requirements :
340 x 340 x 250 mm, 27 kg
Dimensions and weight :
0 - 95% non-condensing
Humidity :
200 - 2500 m AGL, nominal
Operational envelope :
1064 nm
Laser wavelength :
1/5, 500 x altitude
Horizontal accuracy :
<5-15 cm
Elevation accuracy :
50 - 200 kHz
E ective laser repetition rate :
POS AV 510 (OEM) POS AV 410 (OEM)
GPS/GNSS/L-Band receiver
Position and orientation system :
Programmable; 50° max.
Scan width (FOV) :
Programmable; 70 Hz max.
Scan frequency :
0.25 mrad (1/e)
Beam divergence :
Programmable; 10° min.
Roll compensation :
<0.7 m
Minimum vertical target separation distance :
Up to 4 range measurements for each pulse, including last
Range capture :
Up to Power requirements4 intensity returns for each pulse, including last
Intensity capture :
12-bit dynamic measurement and data range
Intensity measurement :
Wide Area MappingCorridor MappingUrban MappingVegetative mapping
