FAST -IR 1000 Infrared Camera
The FAST-IR 1000 scientific infrared camera is the revolution in high speed IR cameras. It is the first 1000 fps full frame solution for the infrared imaging expert. It provides automated either raw or calibrated data in real-time
- Raw Data Output Mode
- Complete Control with SDK
- Fast Filter Wheel
320 x 256 pixels
FPA frame size :
InSb
Detector type :
3.0 µm to 5 µm
Spectral range :
30 µm
Detector pitch :
f/2.3
F/# :
Split-stirling closed cycle
Sensor cooling :
< 18 Mk
NETD :
1 K or 1 % (°C)
Radiometric temperature accuracy :
µ15°C to 150°C , µ15°C to 1500°C (option)
Scene radiometric temperature :
1000 Hz
Maximum full frame rate :
7 µs to full frame time
Exposure time :
Yes
Windowing :
16 bits
Dynamic range :
Yes
RTP - Real Time Processing / NUC :
Yes
EHDRI (Option) :
Up to 4 settings in post processing ; Up to 2 settings in real time
Enhanced High Dynamic Range :
Yes
AEC (Option) :
Yes
Automatic Exposure Control :
Yes
AEC+ (Option) :
Yes
Automatic high temperature range :
Yes
RTTC (Option) :
Yes
Real time radiometric temperature calibration :
CameraLink/GenICam
Command and control :
raw or NUC , (Radiometric temperature optional)
Data output selection :
CameraLink (Full)
Digital output :
NTSC or PAL
Analog output :
input / output
Trigger :
GPS & IRIG
Time stamping (Option) :
Yes
SDK support (Option) :
8x / 1" optics ; Fixed or fast rotating
Multi-spectral (Option) :
µ15°C to 50°C; Without sun radiation
Operating environment :
Janos bayonet interface
Lens mount :
¼µ20 UNC + Dowel pin
Base mounting :
13" x 6" x 9"
Size w/o lens :
10.5 kg (typ)
Weight w/o lens :
24 VDC; 80W Steady-State
Power supply :

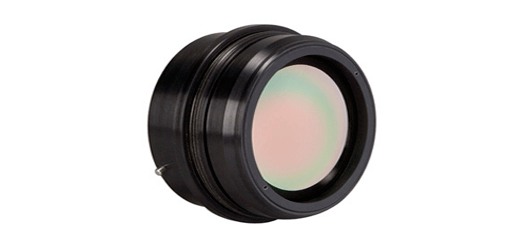

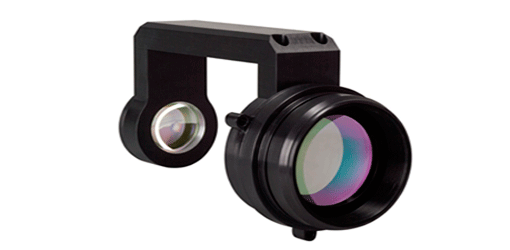

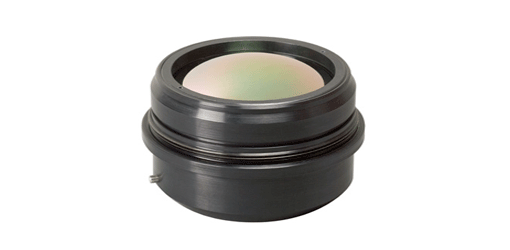

7 ,13, 25, 50, 100
OPTIONAL FOCAL LENGTH AVILABLE (mm) ; available upon request :
Product Specifications.
